1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets;
2. Air lock feeder is used for feeding, with large air volume, good cooling effect;

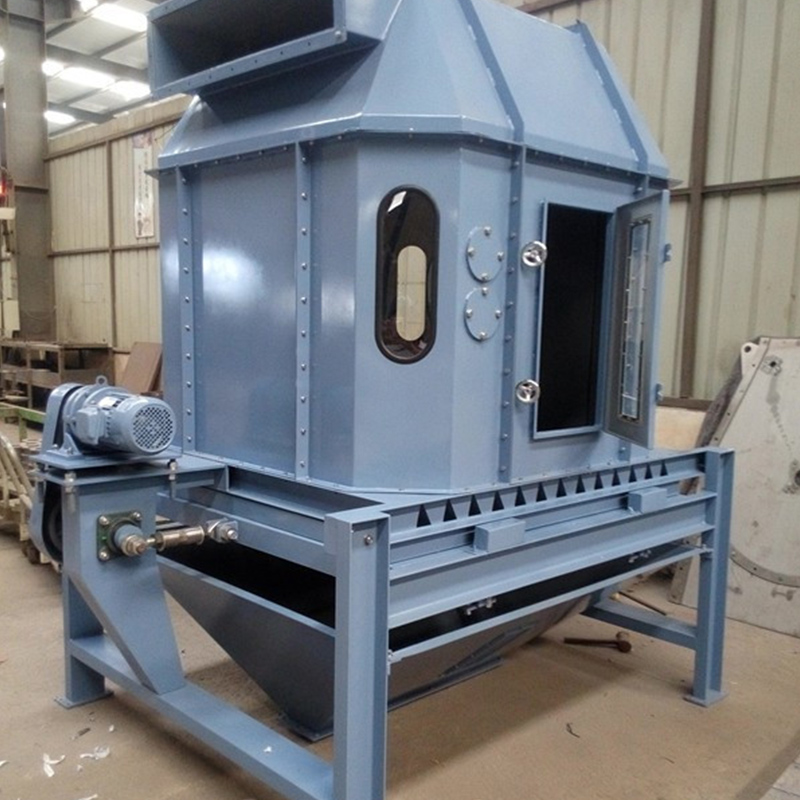

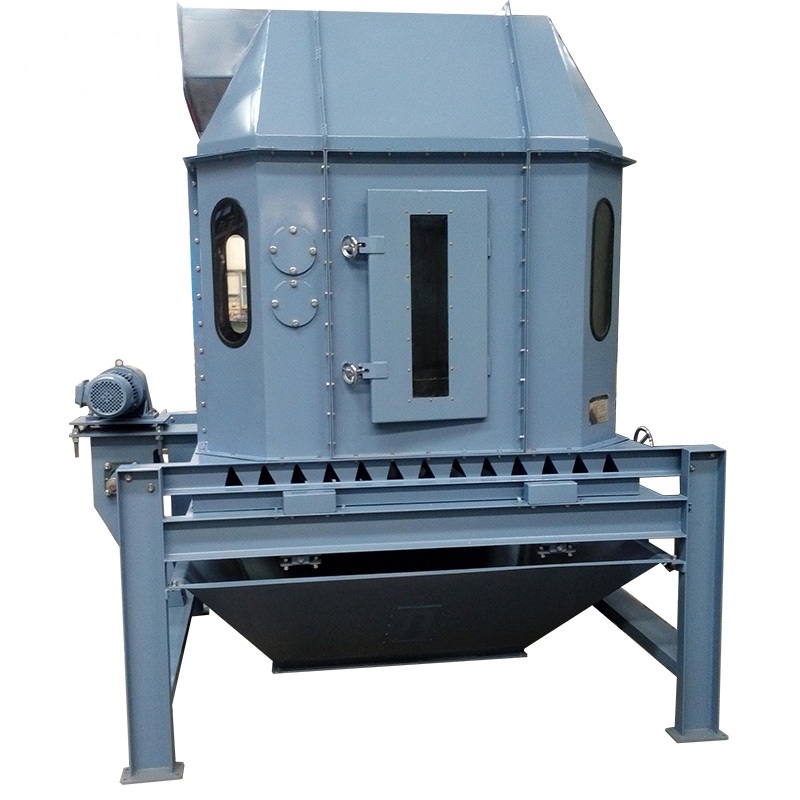

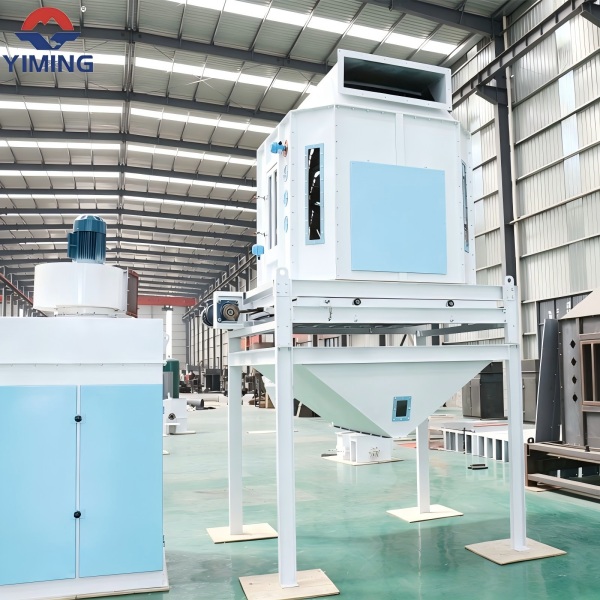

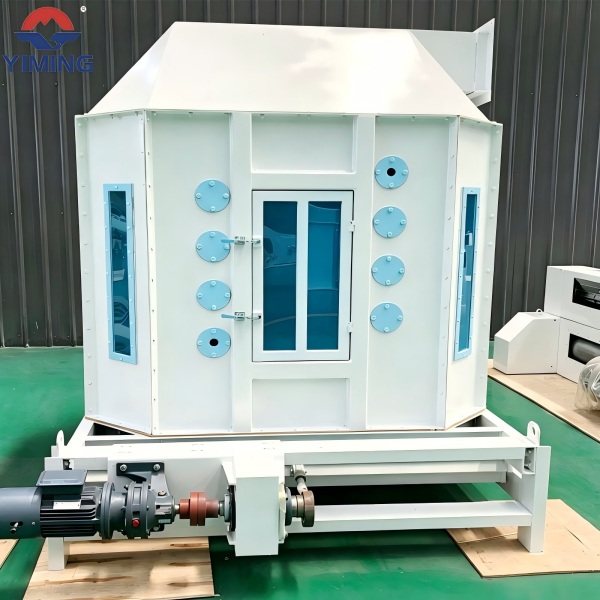

3. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials;
4. Multiple pressure-reducing plate is equipped with discharging device, can lighten the working load of discharging device, reduce the deformation, prolong the working life;

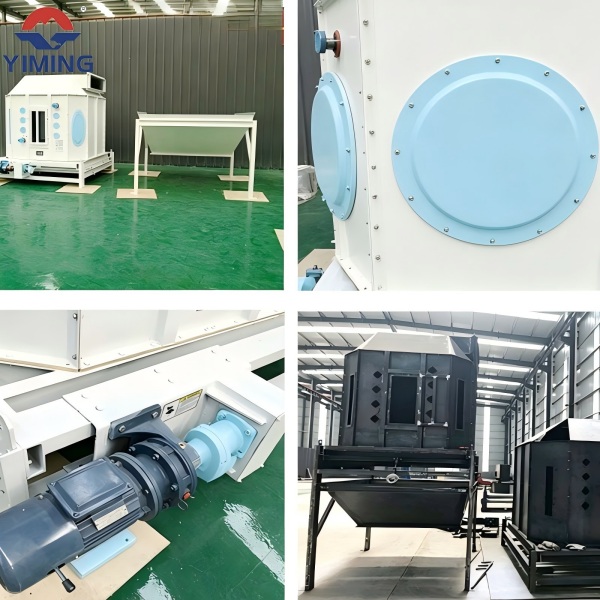

5. The gearbox drives eccentric shaft as transmission gear, smooth and reliable running, no material deposit, lower noise, easy to install and maintain.
2. Air lock feeder is used for feeding, with large air volume, good cooling effect;
3. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials;
4. Multiple pressure-reducing plate is equipped with discharging device, can lighten the working load of discharging device, reduce the deformation, prolong the working life;
5. The gearbox drives eccentric shaft as transmission gear, smooth and reliable running, no material deposit, lower noise, easy to install and maintain.
| Model | SKLN1.0 | SKLN2.5 | SKLN4 |
| Power(kw) | 0.75+0.55 | 0.75+0.75 | 1.1+0.75 |
| Capacity(t/h) | 1-2 | 3-5 | 8-10 |
| Outline dimensions(mm) | 1600*1270*3120 | 2600*1700*3160 | 2700*2200*3700 |
