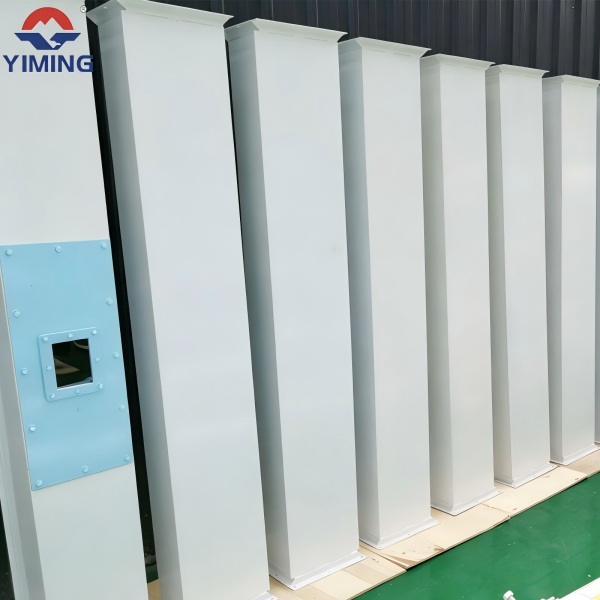

TDTG Series Bucket Elevator is vertical conveying equipment, is mainly used for granule and powder materials in the industry of grain, food, feed and chemicals.
Advantages
1. Special designed tail pulley, effectively prevent off-track and slip;
2. Split hood for easier installation and maintenance;
3. Thicken dust-tight housing, to ensure high rigidity and degree of sanitation;
4. Optional with speed monitor and off-track detector, to ensure safe production..
Advantages
1. Special designed tail pulley, effectively prevent off-track and slip;
2. Split hood for easier installation and maintenance;
3. Thicken dust-tight housing, to ensure high rigidity and degree of sanitation;
4. Optional with speed monitor and off-track detector, to ensure safe production..
| Model | TDTG 36/13 | TDTG 36/18 | TDTG 36/23 | TDTG 36/28 | TDTG48/23 | TDTG48/28 | |
| Power(kw) | According to the lifting height | ||||||
| Capacity（t/h） | 5-8 | 8-15 | 10-22 | 20-35 | 10-22 | 20-35 | |
| Head pulley diameter（mm） | 356 | ||||||
| Head pulley speed（r/min） | 80-85 | ||||||
| Bucket running speed（m/s） | 1.4-1.6 | ||||||
| Bucket space（mm） | 250 | ||||||
| Bucket specs（mm） | 130*110 | 180*140 | 230*140 | 280*140 | 280*140 | 280*140 | |
| Bucket width（mm） | 150 | 200 | 250 | 300 | 300 | 300 | |
