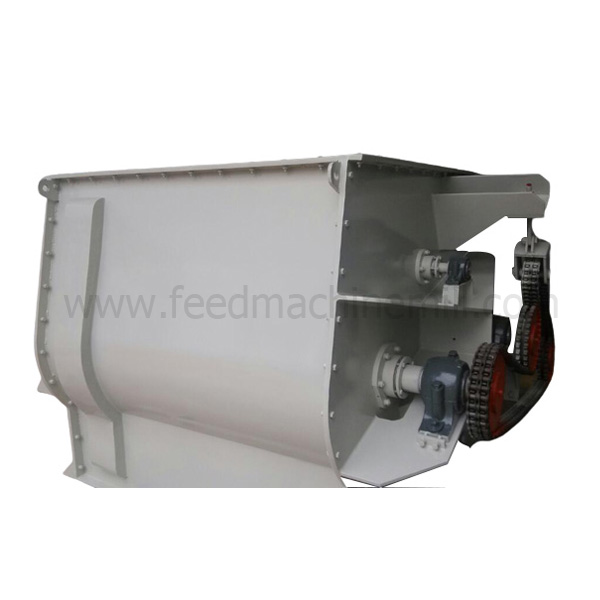

Double shaft blade zero-gravity mixer

Product description:
There are two counter-rotating blades in the barrel of the dual-axis weightless mixing machine. The blades are overlapped and form a certain Angle. The rotating blades throw the materials to the space flow layer, resulting in instant weight loss, falling

We're here to help:Easy ways to get the answers you need.

Send e-mail chat now

Share with :

  • Product description
  • Technical parameter
There are two counter-rotating blades in the barrel of the dual-axis weightless mixing machine. The blades are overlapped and form a certain Angle. The rotating blades throw the materials to the space flow layer, resulting in instant weight loss, falling into each other's area, and the materials are mixed back and forth, forming a fluidized-weight loss zone and rotating vortex in the middle. The material moves along the axial and radial direction to form an omni-directional compound cycle and quickly achieve uniform mixing.
1. Wide range of application, especially for the specific gravity, particle size and other physical properties of large material mixing without segregation.
2. Fast mixing speed, high mixing accuracy, mild mixing process, will not destroy the original physical state of the material.
3. Low energy consumption, sealing operation, smooth operation, low noise, low dust concentration, no pollution to the environment.
4. Compact structure, small footprint, easy installation, use, maintenance and repair.
5. Double seal, gas seal and packing seal, gas path can protect packing root, improve service life.

Model

Volume

Loading coefficient

Motor power(KW)

Demension(mm)

Weight

SYLDF-1

1

0.4-0.8

11.5

2160*1730*1450

1500

SYLDF-2

2

18.5

2160*2050*1560

2000

SYLDF-3

3

22

2590*2200*1750

3200

SYLDF-4

4

30

2680*2650*1850

4500

SYLDF-6

6

45

3050*2850*2100

7000

SYLDF-10

10

55

3550*3150*2400

8000
